TXcell Linear

Grinding without compromise

Products / Machines / TX Linear Range

Linear motors

on X, Y and Z axes

37kW (49HP) peak power direct drive spindle

with BigPlus (BT40) arbor for superior accuracy and rigidity

Integrated robot

Changes up to 24 wheel packs, and tools on up to 4 pallets

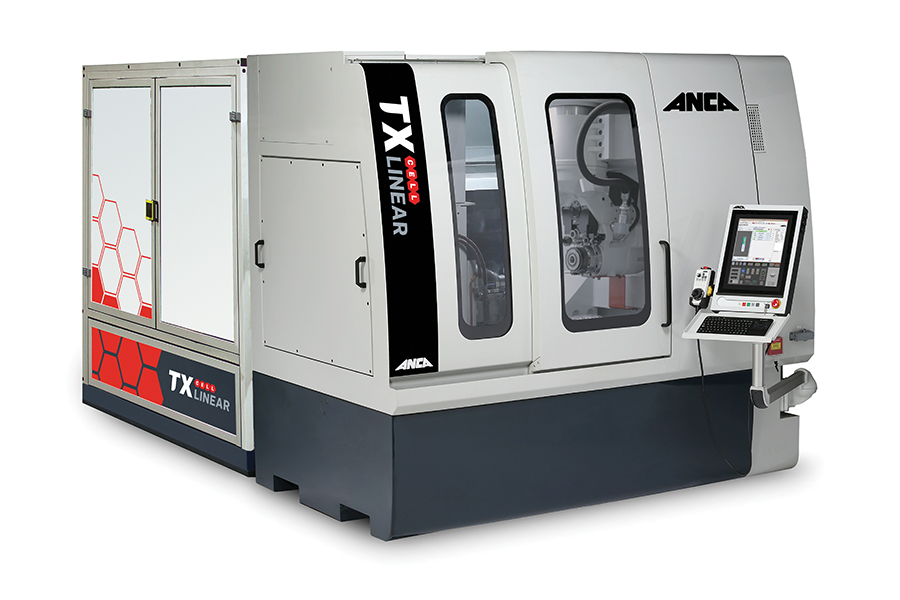

TXcell Linear: Grinding without compromise

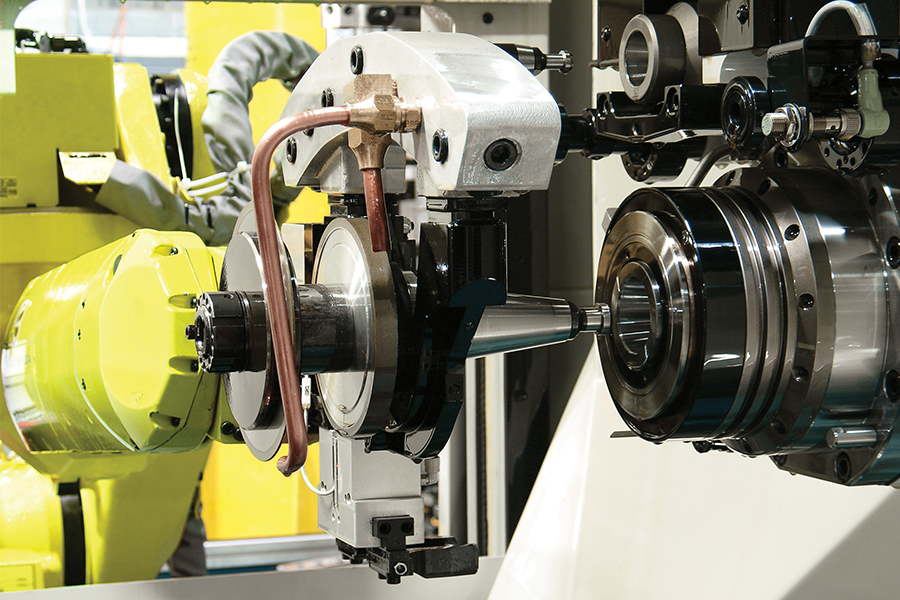

The TXcell Linear delivers all the features of the TX7 Linear with the added benefit of a built-in robotic loader. It can automatically change wheel packs up to 300 mm in diameter and manage a wide variety of workpieces. The system also supports interchangeable tools such as endmills, polishing brushes, deburring brushes, and spindle speeders, allowing for a broader range of grinding and finishing applications in a single setup.

Download PDF Request a Quote

TXcell Linear

  • Product Details
    1
    2
    3
    4
    5
    6
    robot
    dual-robot
    The TX Linear range is the new industry benchmark for production grinding and machining of cutting tools and components. With a large working envelope and powerful grinding spindle, the TX Linear range will deliver precision and productivity across the widest range of applications.

    CONTROL PANEL
    Includes touch screen, USB ports and space for a standard keyboard as well as ergonomic tilt adjust to suit different height operators.
    LARGE WORKING ENVELOPE
    For tool lengths up to 400mm (16”) long, and up to 300mm (12”) diameter, the TX Linear gives total flexibility to tackle any job.
    TXCELL CAPACITY OPTIONS
    TXcell is offered in two sizes. The small robot cell comes standard with 9 wheel packs and option for up to 14, plus it has two tool pallet stations. The large robot cell comes standard with 9 wheel packs and option up to 24, plus it has 4 tool pallet stations. For both configurations the TX grinder machine is the same.

    Applications

    From endmills to punches, taps and PCD tools, ANCA has the machine that meets all your application needs. Learn how ANCA can help you grind the perfect tool.

    Read More

    Frequently Asked Questions

    How is the 3000RPM capability on the headstock utilised?
    TX headstock can be run as a spindle up to 3000RPM which delivers two very useful functions. Firstly, wheel dressing operations take advantage of this when a dresser roll is mounted to the headstock. Secondly, cylindrical grinding operations using peel grinding methods are also possible.
    What work holding options are usable on the TX Linear?
    ANCA offers its own range of PremierPlus collet adapters that utilise a range of Schaublin collet systems for precise and rigid tool holding. TX7 headstock also includes a BT50 taper with pull stud retention, which means operators can alternatively mount their own specific work holding systems.
    What are the two standard configurations of TXcell?
    The standard TXcell is offered with 9 wheel pack stations (option up to 14) and two tool pallet stations.  The larger TXcell is offered with 9 wheel packs (option up to 24) and 4 tool pallet stations.
    I plan to manufacture carbide endmills, what machine options would you recommend?
    Beyond the standard machine with Robomate loader, ANCA offers a number of handy options that can improve your machine productivity for endmills.

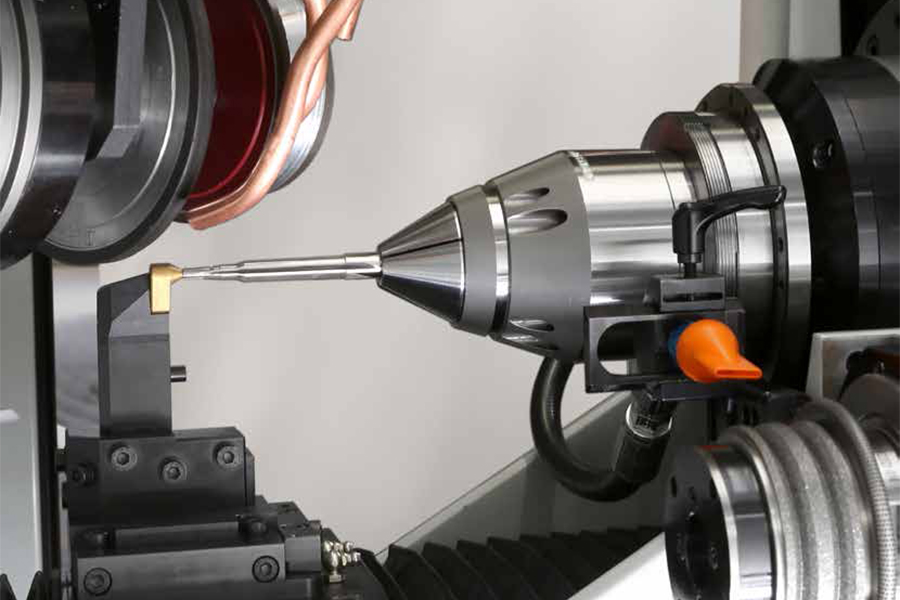

    Pop up steady supports the tool during grinding to ensure optimal tool runout.

    LaserPlus automatically measures the tool in the machine and will compensate key dimensions to ensure unmanned production is consistent and accurate.

    AutoStick will recondition a wheel in process, maintaining optimal wheel grinding condition.

    iBalance eliminates wheel pack imbalance, and delivers superior tool surface finish.
    What wheel diameters and weights can be used in TXcell?
    TXcell will handle 300mm diameter grinding wheels on a limited number of wheel pack stations, and the remainder take 200mm grinding wheels.   Maximum wheel pack weight is 8kg.

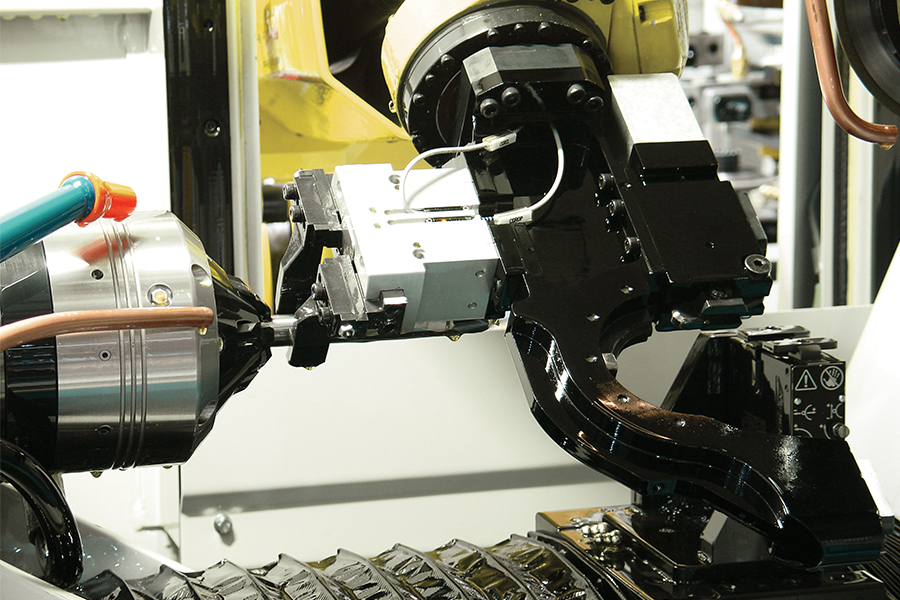

    Can the robot in the TXcell be used for operations other than wheel pack and tool load?
    Yes, ANCA develops customised solutions upon request, to take advantage of the flexibility offered by a robot loader.  Examples include part measurement, laser etching and part washing.  ANCA’s dual robot TXcell can offer even greater automation potential.

    Related Products

    CIM3D

    The 3D revolution which changed an industry

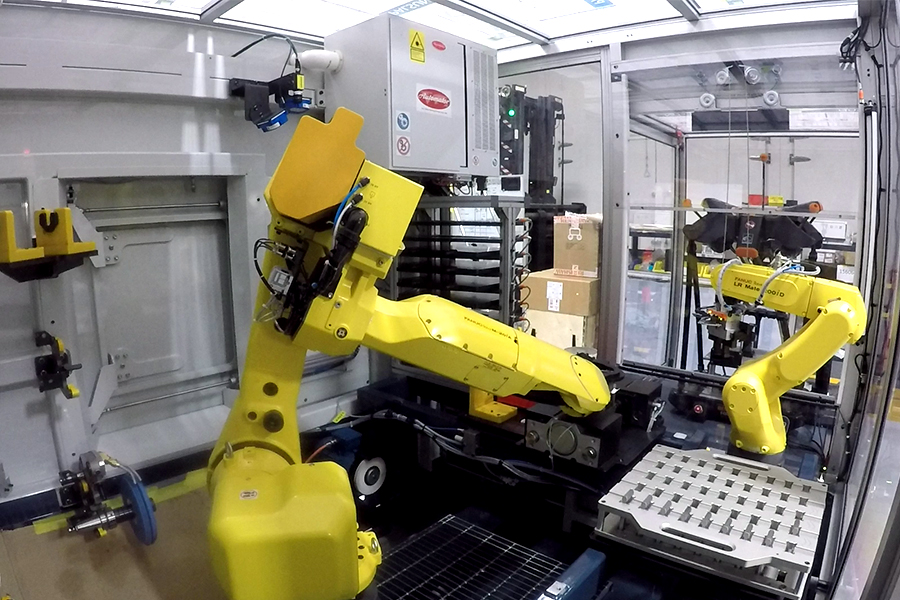

    Dual robot solution

    A market first - dual robot grinding cell

    Management Suite

    ANCA’s new smart factory solution
  • Technical Specifications

    Machine Specifications

    Machine Structure Bi-Symmetrical Gantry
    Spindle Power 37 kW (49 HP) peak 15 kW (25 HP) S1
    Wheel Packs Options up to 24: 10 x Ø 305 mm (12”) max & 14 x Ø 203 mm (8”) max
    Tool (shank) Diameter Productive up to Ø 32 mm (1¼”)
    Tool Length (Max) - flute length may vary depending on tooling (if applicable) 400 mm (16”)
    Loader Type Integrated. Robot loads tools & wheels & performs auxiliary operations (eg: laser etch)
    Max. Tool Capacity (with loader) 2520 x Ø 3 mm 1560 x Ø 6 mm 462 x Ø 16 mm 189 x Ø 25 mm 105 x Ø 32 mm
    Drive System Linear Motor
    Dimensions 2561 mm (100.8”) W 3070/3486 mm (121/137.2”) D (2/4 pallet versions) 2260 mm (89”) H +standalone robot controller (750Wx550Dx1100H)
