Linear motors

on X, Y and Z axes

37kW (49HP) spindle

with 2 wheel pack changer

iTap application software

allows you to program any tap

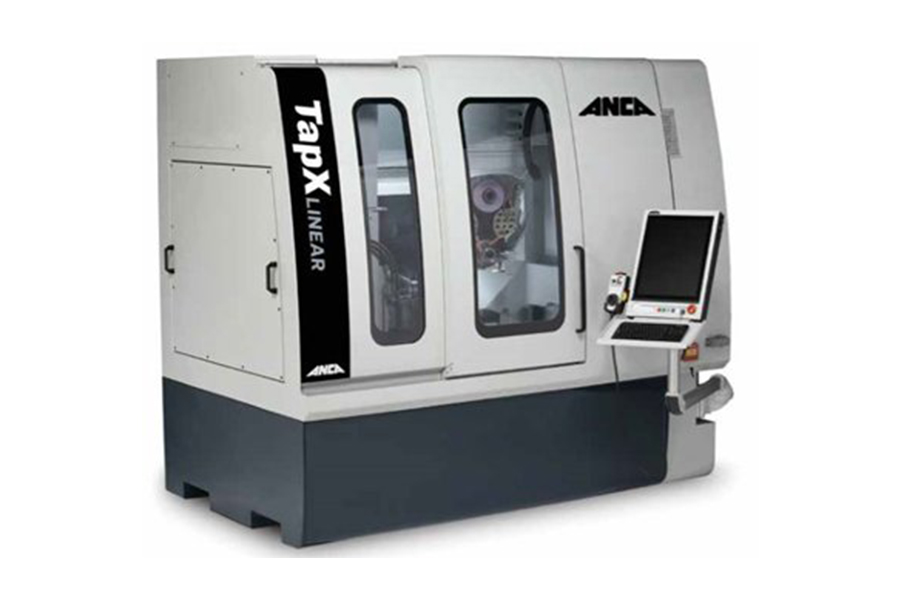

TapX Linear: Leading the revolution in single setup tap manufacture

TapXLinear is a machine purpose built for the needs of a tap manufacturer. TapX Linear is offered with software, tooling, coolant delivery and automation specifically for production grinding of all types of taps, from M3 up to M50, whether in high speed steel or carbide. Clever tooling design means changeover from one tap type to another can be done in minutes, not hours. This delivers greater flexibility in your tap production and results in increased productivity and reduced costs.
  • Product Details
    ANCA was the first machine manufacturer to deliver to market a single setup machine for complete tap manufacture. Continuing this tradition of industry firsts, ANCA now offers the TapX Linear range of machines – the first single setup tap grinding machine with LinX linear motor technology on X, Y and Z axis. TapX Linear finds the perfect balance between proven designs combined with ANCA’s newest technologies. The result is a superior machine that ensures customers will meet ever increasing market demands of precision tap grinding.
    TapX covers taps sizes M3 to M50 and is capable of complete grinding any tap type in one setup - spiral, straight flute, forming taps in either HSS or carbide.  TapX Linear gives total flexibility to tackle any job in the compact footprint of a single machine.
    Includes compensating chuck and CNC tailstock for precision grinding between centres.  Other features such as dual dressing systems, automatic adjusting coolant nozzles and robotic tool loading ensure confidence with lights out production.
    Not only does ANCA’s dedicated iTap software allow easy programming of any tap type, supporting software makes for easy wheel design and in process dressing. CIM3D simulation software will also mean your tap design and grinding program can be proven offline, before you lay a hand on the machine – saving you setup time and ensuring you grind the right tool from the first.
  • Technical Specifications

    Machine Specifications

    Machine Structure Bi-symmetrical gantry
    Spindle Power 37 kW (49 HP) peak 15 kW (25 HP) S1
    Wheel Packs 2 x Ø 203 mm (8”) max
    Tool (shank) Diameter Productive up to M50
    Tool Length (Max) - flute length may vary depending on tooling (if applicable) Max overall tap length 230 mm
    Loader Type RoboMate (option)
    Max. Tool Capacity (with loader) M3 - 630 M6 - 630 M16 - 360 M30 - 120
    Drive System X, Y and Z axis – LinX linear motor, A & C axis – direct drive motor
    Dimensions 2561 mm (100.8”) W 1500 mm (59”) D 2272 mm (89.4”) H *with RoboMate 2260 mm (89”) D*
    CNC Details ANCA AMC5, EtherCAT, high performance CNC, 8GB RAM, H/D 64GB SSD, Processor i7, Windows 8
    Machine Colours RAL 7035 / RAL 5008


From endmills to punches, taps and PCD tools, ANCA has the machine that meets all your application needs. Learn how ANCA can help you grind the perfect tool.

Read More

Frequently Asked Questions

Can you grind different tap types in one setup?
Yes, with TapXcell offering up to 24 wheel packs, it is possible to configure the machine to switch from producing one tap type to another without stopping the machine, as long as the tooling for holding the taps is common.
Does TapX cater for different methods of thread grinding?
Yes, TapX software allows for thread grinding using either single rib or multi-rib grinding wheels.  Dresser rolls are easily changed over with a quick release HSK arbors.
How can I measure my taps?
ANCA’s iProbe Thread Measurment allows operators to measure relief profile of OD and thread flanks without removing the tool from the machine.  This semi-automatic system utilises a probe mounted in the machine, and can generate measurement reports of the profile relief.
