Loads tool diameters

from Ø2mm to Ø20mm (Ø1/8” to Ø3/4”)

Double set of grippers

for quick tool unload/load into the collet

15 seconds

tool unload/load cycle time

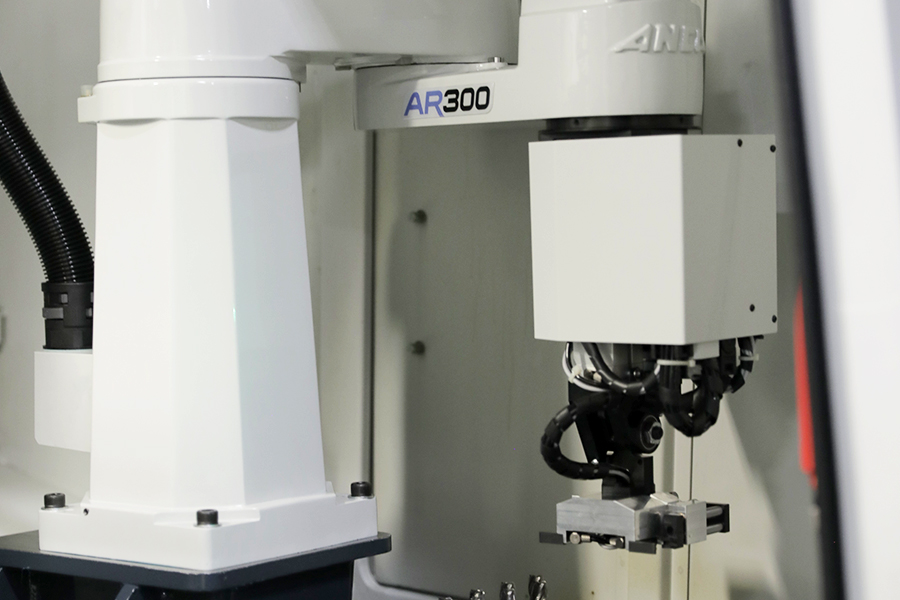

AR300: ANCA's designed and built auto tool loading solution

Fully developed and built by ANCA and utilising the latest control technology from ANCA Motion, the AR300 loader is an excellent value-for-money auto tool loading solution for the FX5 Linear machines. The loader provides quick tool loading, as the tool is passed directly from the pallet to the collet in a single gripping action.

The AR300 loader is also available on the CPX Linear machine, however the gripper arrangement and pallets used are different to what is used on the FX Linear machines.

Download PDF Request a Quote

AR300

I have one and it's really intuitive and easy to use. I was running different workgroups in the same tray first day I had it without any training.

James Joly

President, Mainline Tool & Grind Inc

COLLET LOADING CAPABILITY

Available for FX5 Linear machines, the AR300 loader is now capable of loading collets. The AR300 robot clamps the collet and tool together with a loading cycle of approximately 25 seconds, providing flexibility and allowing customers to run mixed batches of tools unmanned. Collet loading of Nikken KM and NK collets is a solution for customers to load different diameter tools in the same setup.

The ANCA Loadermate workstation allows the individual input of grinding parameters for each tool and assigns the program to a loader position. A pallet of mixed tools can be prepared for automatic resharpening while the machine is running another batch.

AR300

ANCA's designed and built auto tool loading solution

Loads tool diameters

Double set of grippers

15 seconds

AR300: ANCA's designed and built auto tool loading solution

AR300

COLLET LOADING CAPABILITY

MINIMAL FOOTPRINT

LOADERMATE SOFTWARE
