Can be easily converted

for use as a Tailstock

Compatible

with all machine tooling accessories including automation

Suitable

for tools with flute lengths up to 350 mm

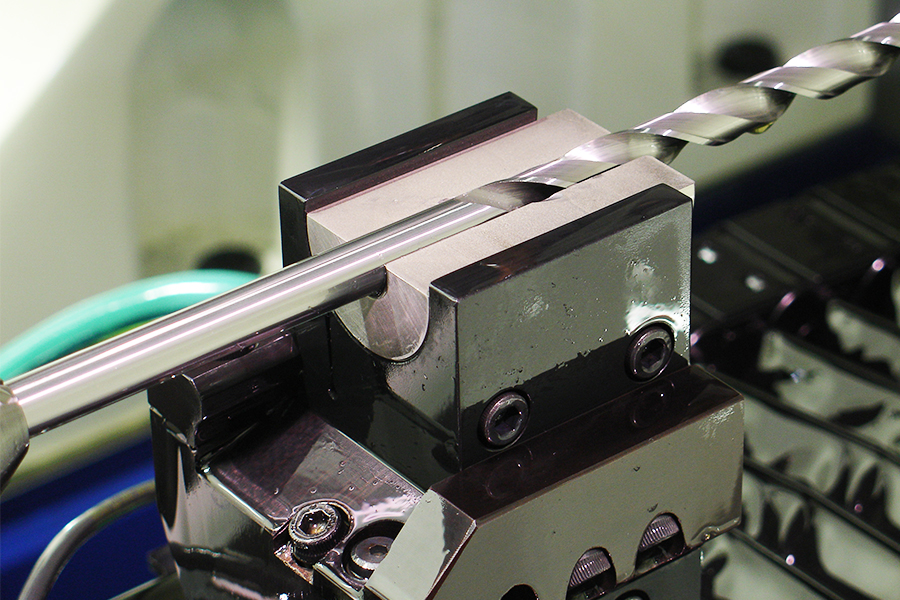

Travelling steady: Automatic support of long drills

ANCA’s travelling steady is a very strong and accurate piece of tooling that has revolutionised grinding of long tools. The travelling steady provides the machine with an additional axis (P-axis) which keeps the tool support directly underneath the point of grinding at all times. The travelling steady eliminates errors that would be caused by tool deflections if a fixed steady or no steady were used instead.
SUPPORT DURING GRINDING
Provides rigid tool support during grinding to prevent flexing, chatter marks and poor surface finish.
EASILY PROGRAMMED
The P-axis is highly configurable and is easily programmed to follow the grind point, or remain at the programmed offset from the grinding point or locate on any position relative to the tool.
COMES IN THREE OPTIONS

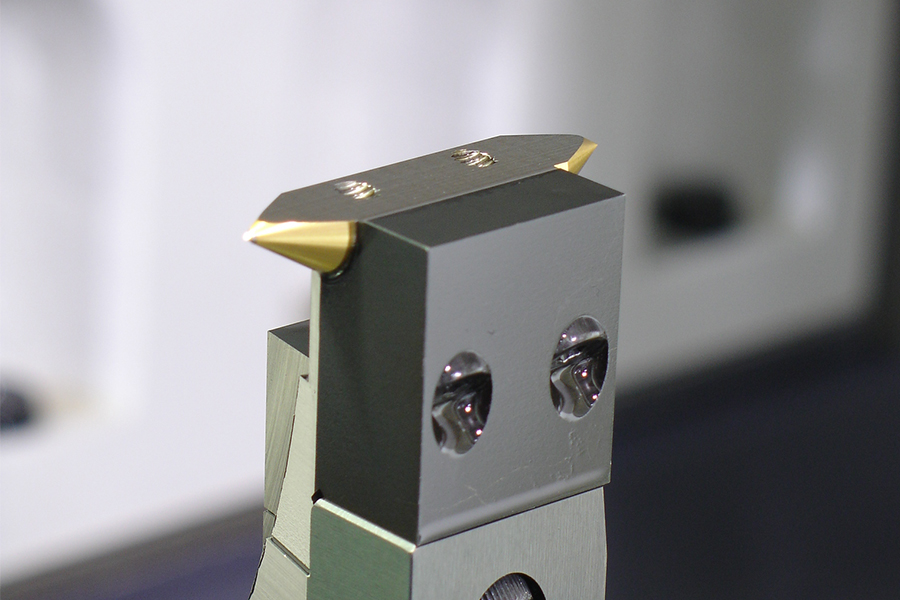

ANCA can supply travelling steadies as either a bush, tailstock or Arobotech hydraulic version.
