Indexable inserts are mounted in a holder and used in milling, drilling and turning operations. Inserts have multiple cutting edges which are available in many shapes, sizes and forms depending on the application. The benefit of an indexable insert is that it can be rotated in the holder in a machine when one side is worn to expose a new cutting edge. Specific workholding is usually required to hold the insert when grinding.

ANCA provides complete solutions for manufacturing profile and customised cutting inserts. By combining precision CNC grinding, dedicated software, flexible workholding, probing and automation, ANCA supports insert production for optimising turning and other machining processes.

InsertsPRO

InsertsPRO is a dedicated solution for programming and grinding profile and customised inserts on ANCA CNC grinding machines.

The Profile Insert Wizard guides operators through each programming stage, from defining the insert and cutting profile to setting the rake face, relief and grinding process. Its logical workflow reduces programming effort, making tool setup quicker and easier, including for less experienced operators.

Existing STEP models can be imported as Custom Blanks. The imported 3D geometry represents the actual incoming blank in CIM3D, providing more representative simulation data. Users can review material removal, compare the blank with the finished insert and verify the grinding process before production.

Dedicated digitising routines determine the insert position and orientation in the workholding, supporting accurate and repeatable grinding.

From fast programming with InsertsPRO to tailored solutions for customised profile inserts, ANCA supports the complete insert-grinding process.

InsertsPRO benefits

•   Fast programming with the Profile Insert Wizard
•   Production of profile and customised inserts
•   Custom Blank STEP model import
•   Representative CIM3D process simulation
•   Insert digitising and alignment
•   Flexible profile, relief and rake-face grinding

Special Inserts

ANCA provides tailored solutions for producing a wide range of profile and customised inserts designed to optimise turning processes.

These inserts can incorporate unique profiles, cutting geometries, datum features and seating surfaces. ANCA develops the grinding process around each application, combining customised software, secure workholding, probing and automation.

A complete solution can include dedicated grinding operations, application-specific clamping, touch-probe measurement, robotic handling and high-capacity pallets.

Special Inserts solutions can include

Application-specific workholding and clamping

Customised profile-grinding processes

Dedicated software and probing routines

Insert grippers and high-capacity pallets

Robotic loading and unloading

Complete process development and verification

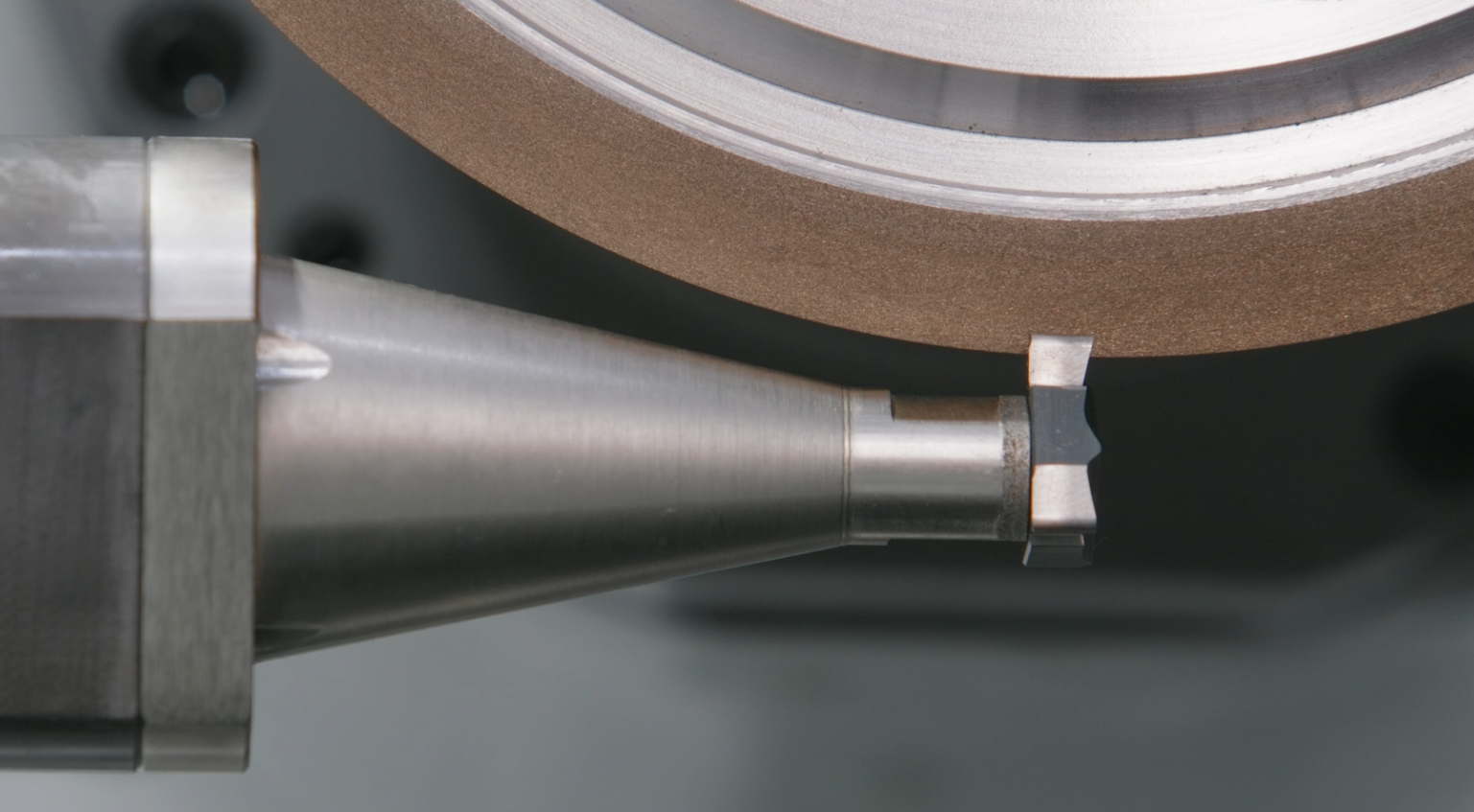

Inserts application
