MX5 Linear

Quality has just become more affordable

Products / Machines / MX Linear Range

Linear motors

on X and Y axes

Permanent magnet spindle

provides higher torque at lower RPM, ideal for carbide grinding

Bi-symmetrical gantry

a proven design for ultra-high precision grinding

MX5 Linear: Quality has just become more affordable

Designed with volume producers in mind, the MX5 Linear has the flexibility to manufacture mixed batches. The MX5 Linear includes the most important features of the premium MX platform, such as the bi-symmetrical gantry which supports the grinding wheel and spindle. Evenly straddling the tool centre line, the gantry provides extra rigidity for consistently accurate tools.

Download PDF Request a Quote

MX Linear

  • Product Details
    1
    2
    3
    The MX Linear range is specifically designed to meet the needs of tool production facilities seeking maximum output while remaining flexible to customer requirements. The machines include new technology linear motors that enable them to achieve even higher levels of accuracy and performance.

    COMPACT AND RIGID DESIGN
    Small machine footprint with a large working envelope. It has minimal axis movements during grinding which reduces cycle times.

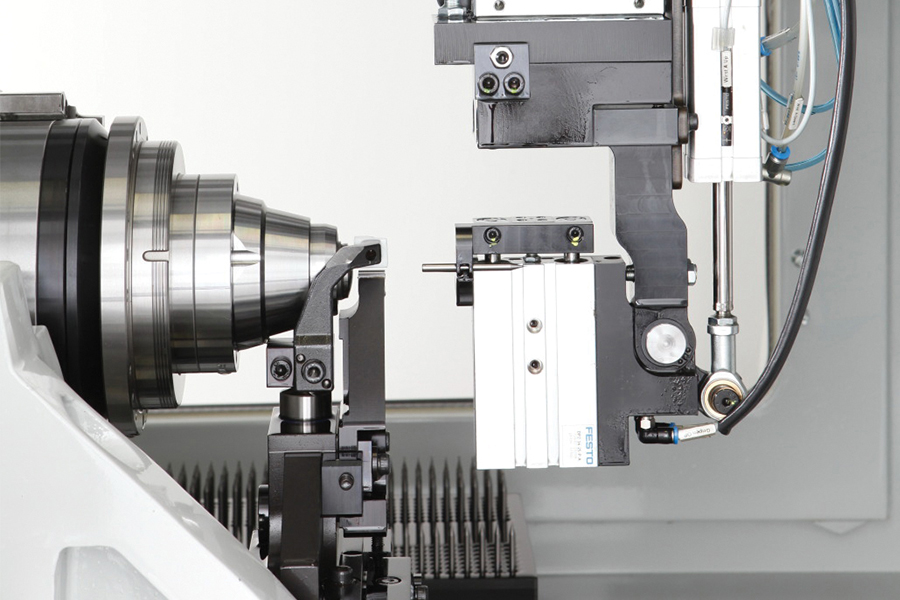

    AUTOMATION OPTIONS
    RoboMate for high volume tool production or FastLoad-MX for low-volume.
    WHEEL CHANGER
    2-station wheel changer included as standard for MX5 and a 6-station for MX7. Loads wheel packs and coolant manifolds for maximum productivity.
  • Technical Specifications

    Machine Specifications

    Machine Structure Bi-Symmetrical Gantry
    Spindle Power 26 kW (35 HP) peak 14 kW (19 HP) S1
    Wheel Packs 2 x Ø 203 mm (8”) max
    Tool (shank) Diameter Productive up to Ø 16 mm (5/8”)
    Tool Length (Max) - flute length may vary depending on tooling (if applicable) 300 mm (12”)
    Loader Type FastLoad-MX (option) RoboMate (option)
    Max. Tool Capacity (with loader) FastLoad-MX: RoboMate: 245 x Ø 3 mm 2520 x Ø 3mm 156 x Ø 6 mm 1560 x Ø 6 mm 42 x Ø 16 mm 462 x Ø 16 mm 189 x Ø 25 mm
    Drive System Linear Motor
    Dimensions 2246 mm (88”) W *with RoboMate 1856 mm (73”) D 2245 mm (84”) W* 2116 mm (83”) H 2279 mm (90”) D*
    CNC Details ANCA AMC5 G2 High Performance CNC, High Speed SSD, Ethercat, Intel processor, Windows 10

Applications

From endmills to punches, taps and PCD tools, ANCA has the machine that meets all your application needs. Learn how ANCA can help you grind the perfect tool.

Read More

Frequently Asked Questions

What is the axis stroke of the MX5 machine?
X-axis
Axis travel 540 mm
Y-axis
Axis travel 510 mm
Z-axis
Axis travel 217 mm
A-axis
Axis travel 360°
C-axis
Axis travel 264° (+44, -220)

What type of spindle is used on the MX5 Linear?

​The spindle used on the MX5 is permanent magnet with a Peak Power of 26kw (34HP) and S1 rating of 14kw (18.7HP).
What is the maximum wheel pack weight for MX5 Linear?

Maximum wheel pack weight is 8kg (total wheel pack assembly)
